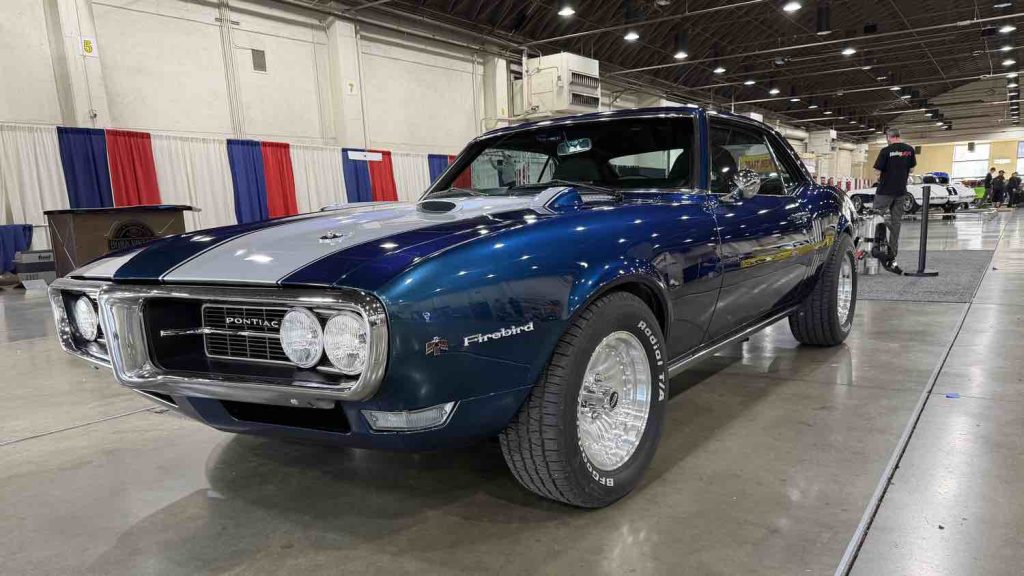

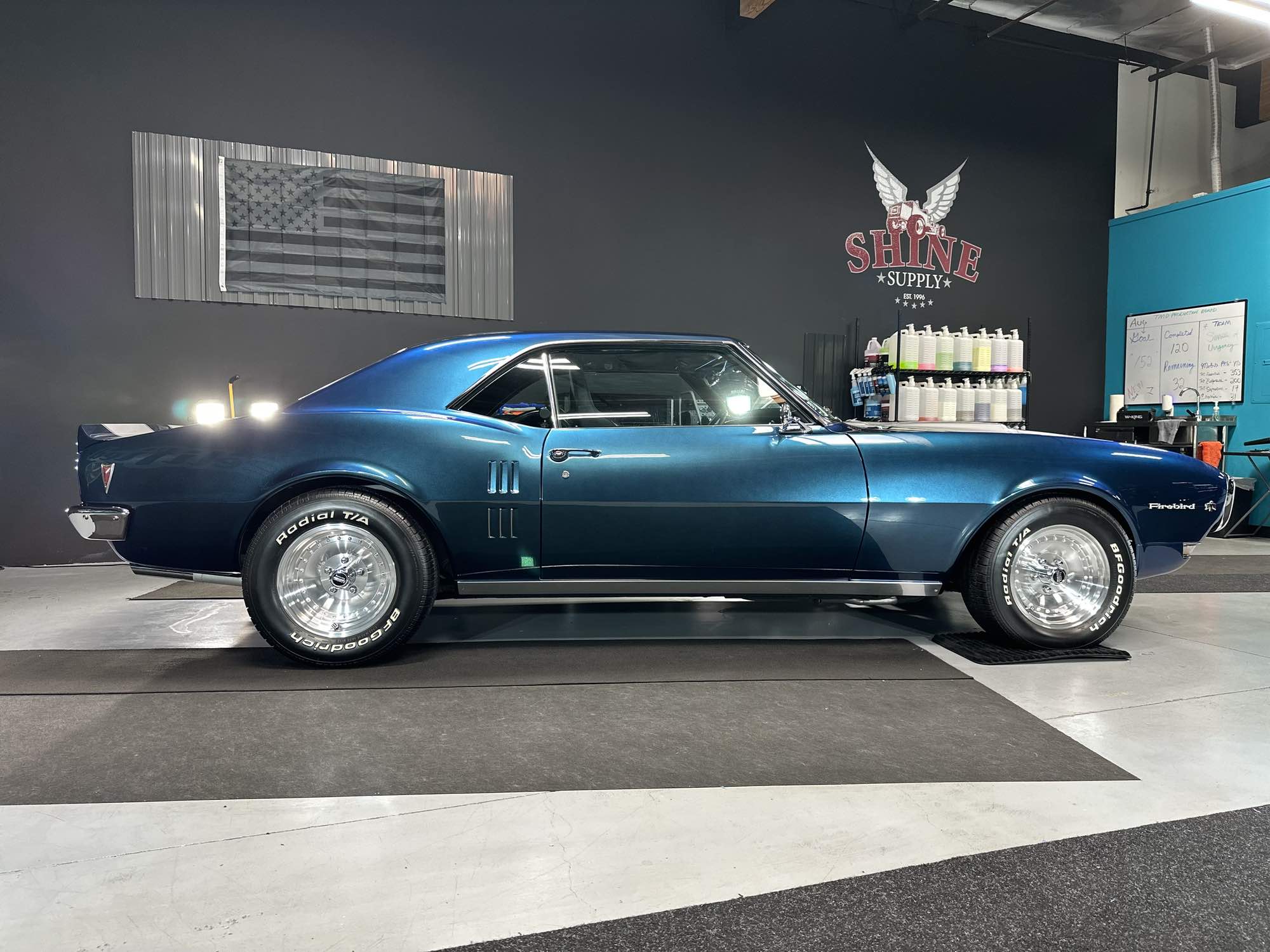

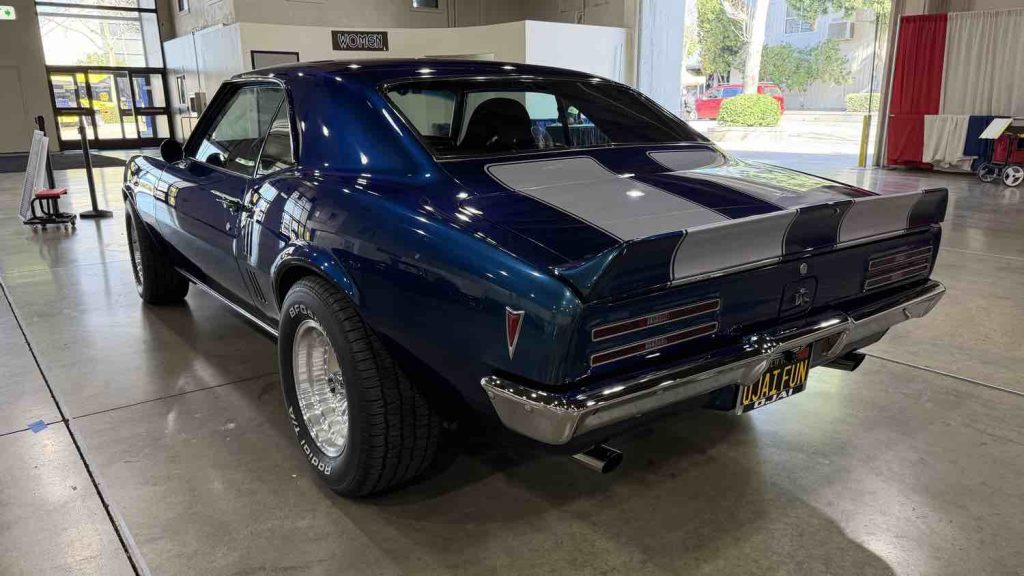

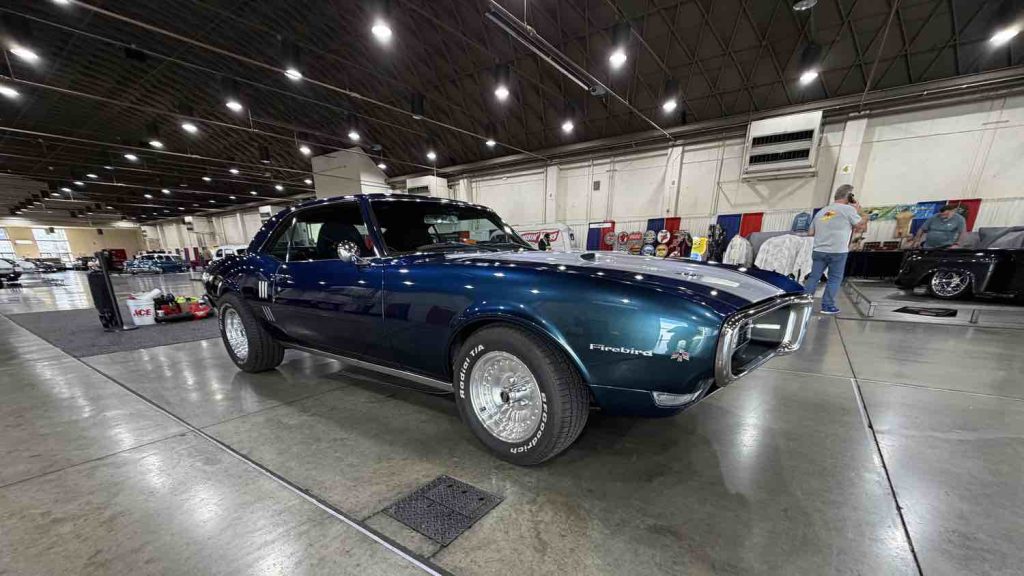

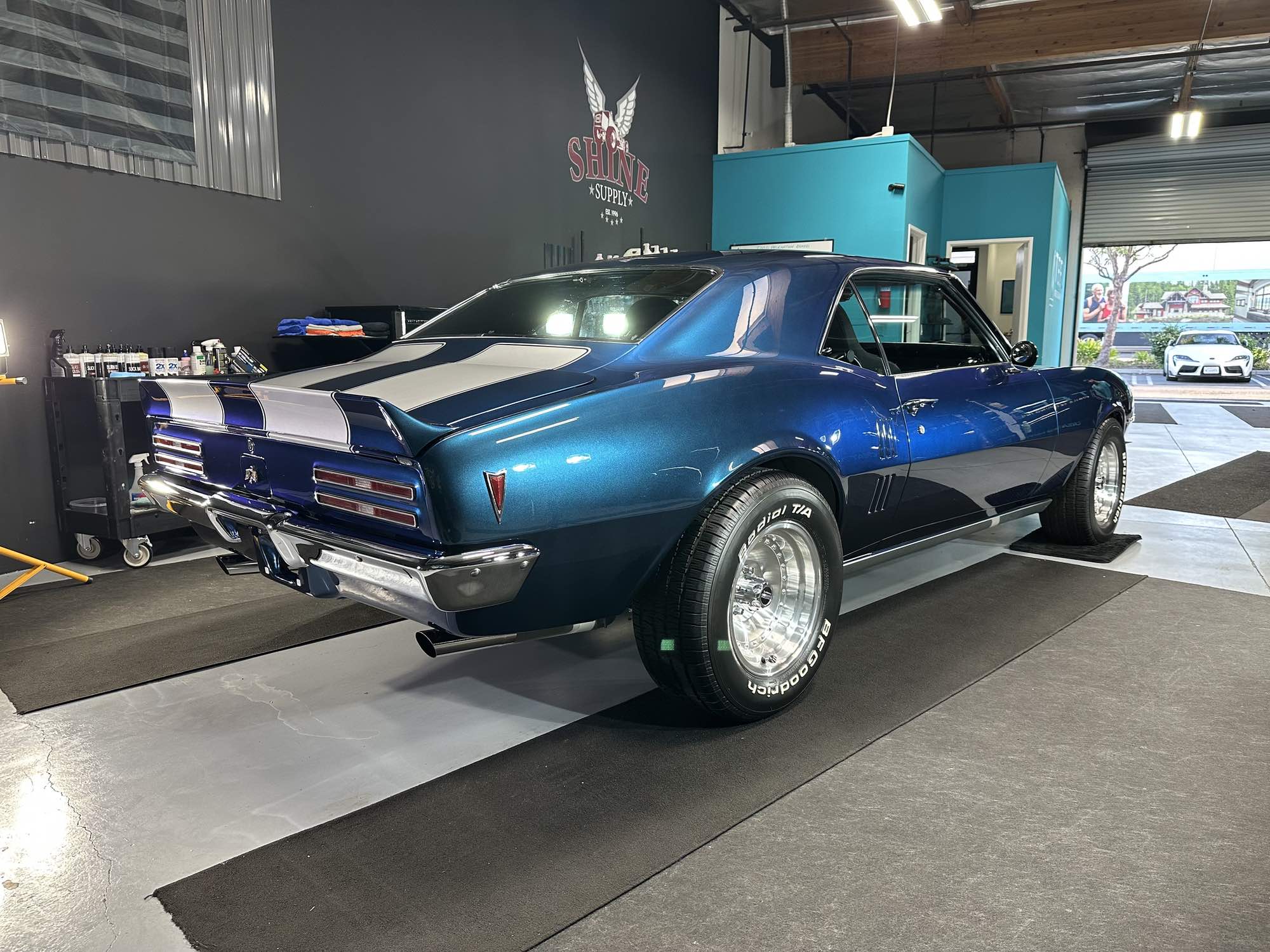

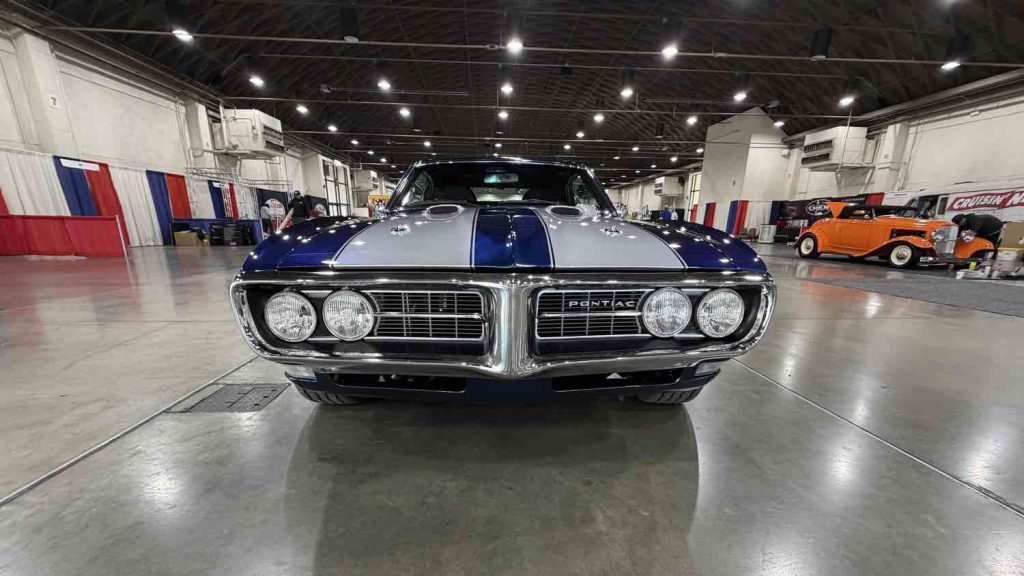

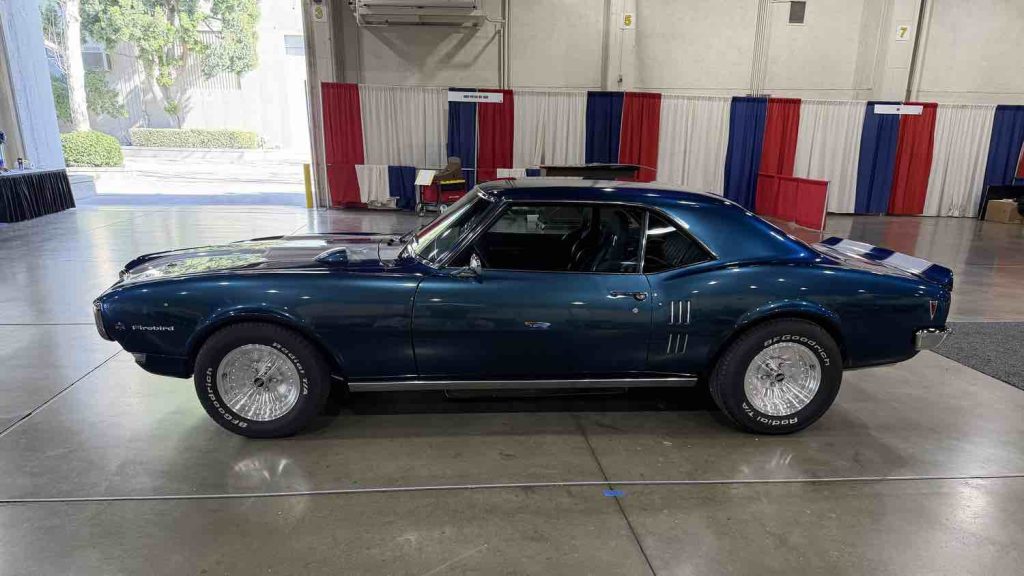

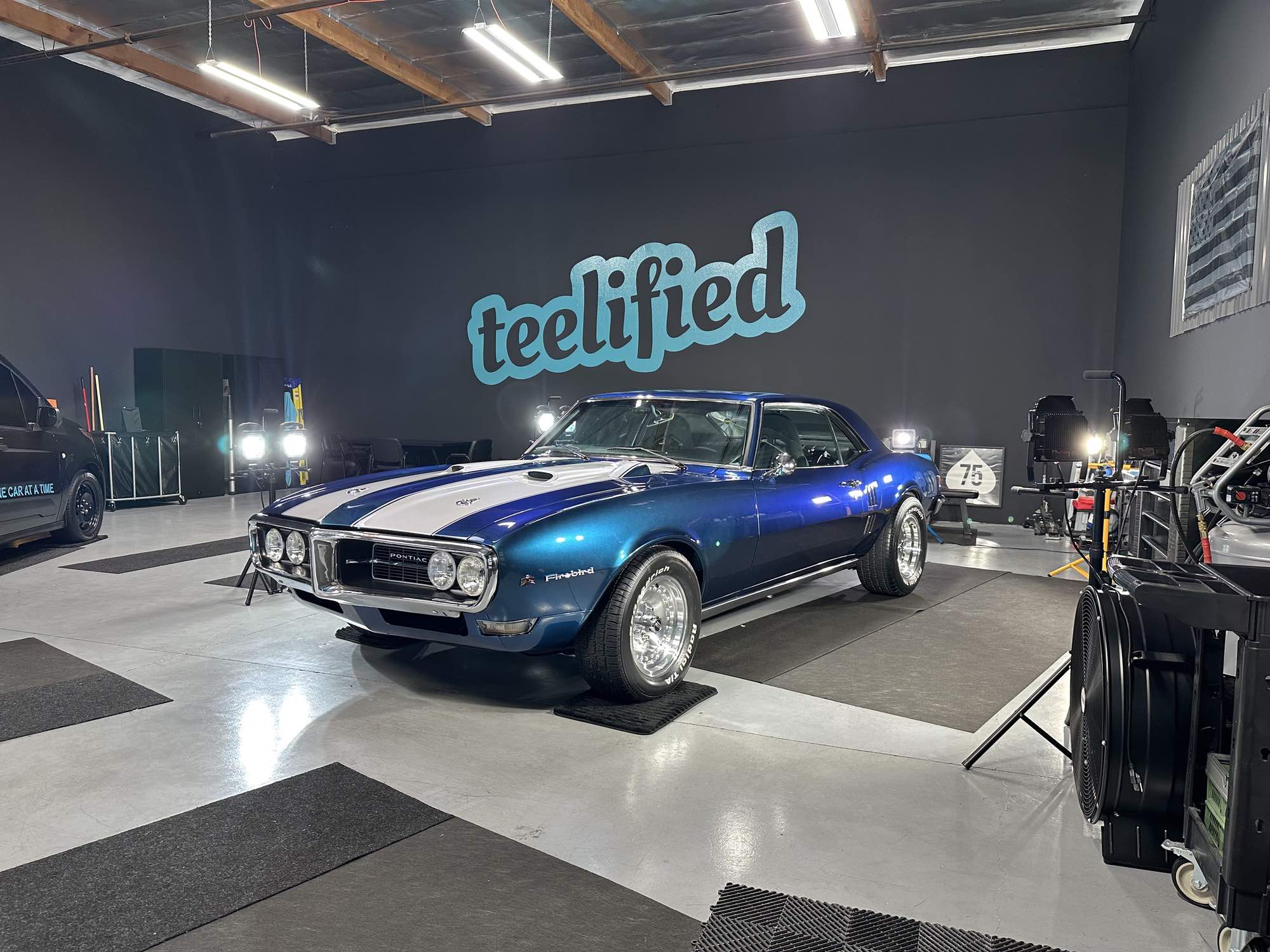

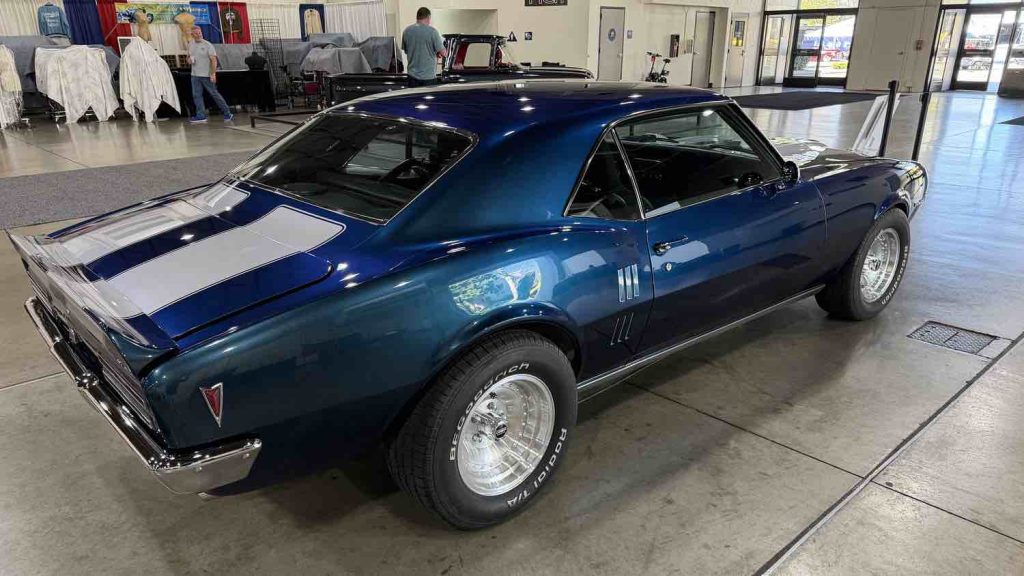

1968 Pontiac Firebird 350 H/O

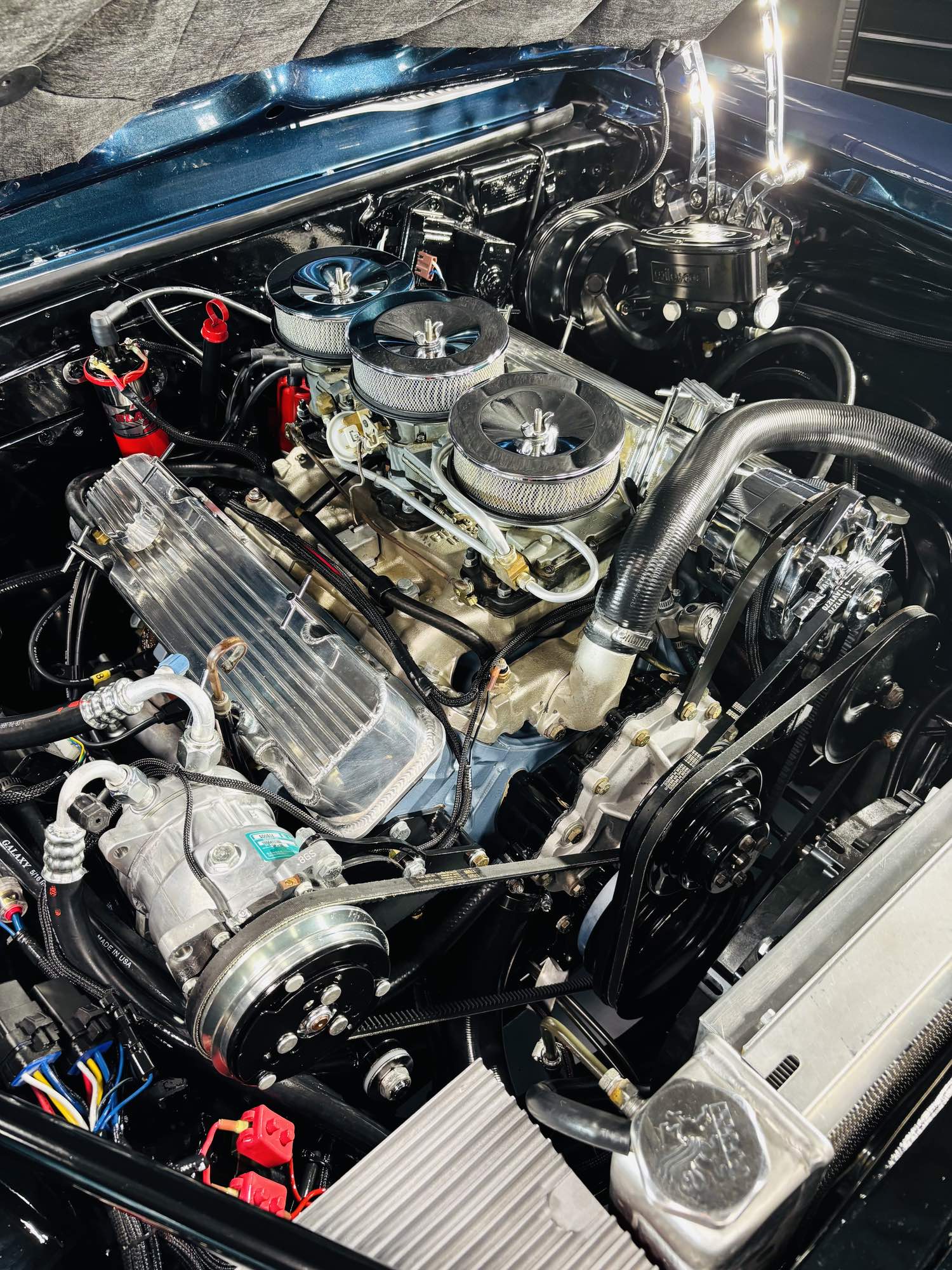

Built Pontiac 350 Stroker V8
Original Pontiac block .060 overbore
Forged Scat crankshaft, rods, and pistons
Isky Hydraulic Rattler camshaft
Aluminum triple core radiator with dual fans
TIG welded aluminum tall valve covers
Original GM all-metal Firebird body
Professionally straightened and skim-coated (no filler)
Color shifting paint: body and stripes, Didspade Paint
Pontiac 400 H/O hood, Eddie Motorsports billet hood hinges & pins
Triple Rochester carburetors (progressive)
Edelbrock six-pack intake manifold
MSD programmable ignition system
Built 700R4 overdrive transmission
Corvette-spec valve body
Hurst Quarter Stick gate shifter
TA Performance 12 bolt rear end 3.90:1 posi
Tubular control arms and coilovers shocks
Helix four-link rear suspension
Wilwood four wheel disc brakes
Centerline forged aluminum wheels

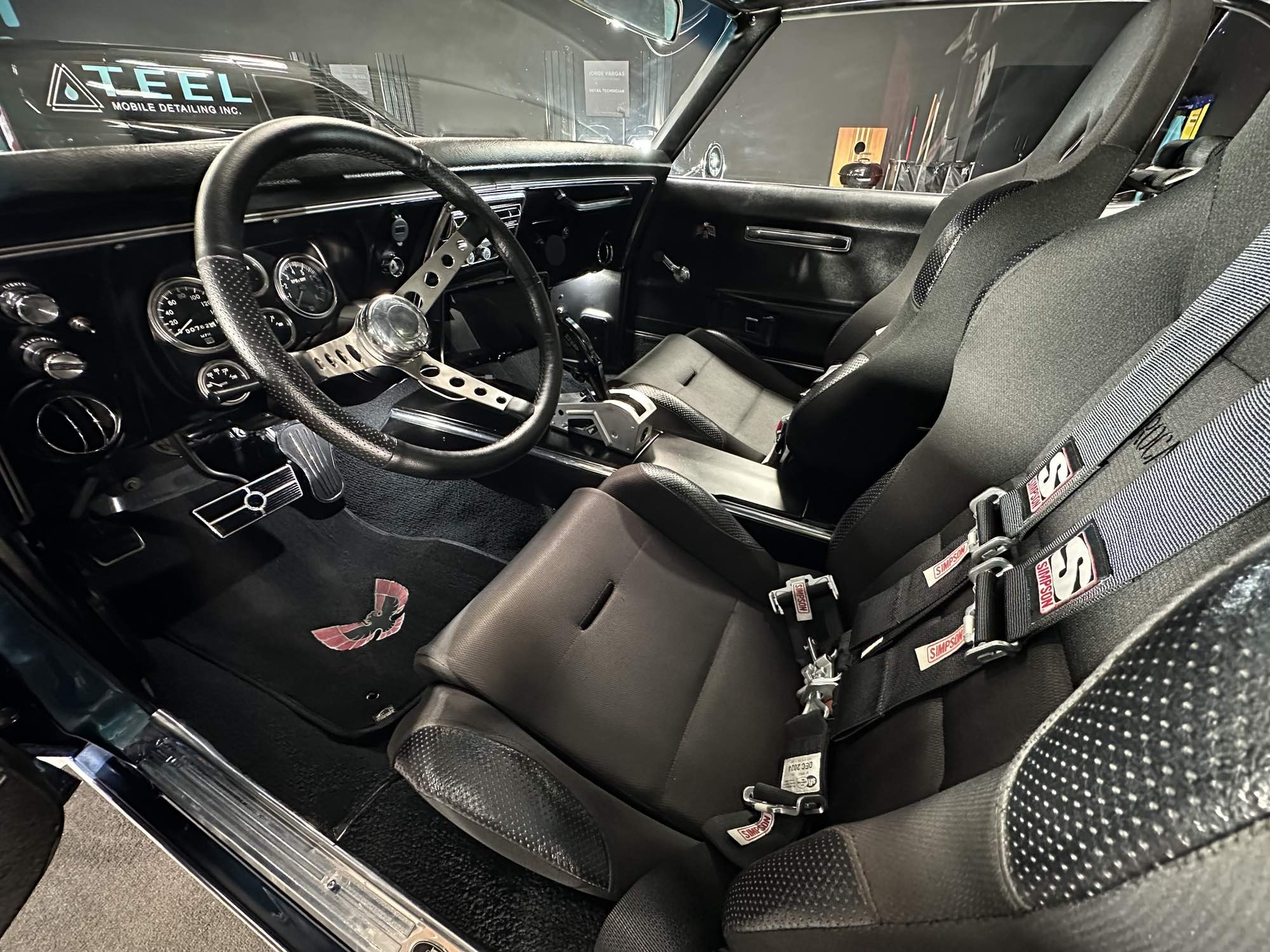

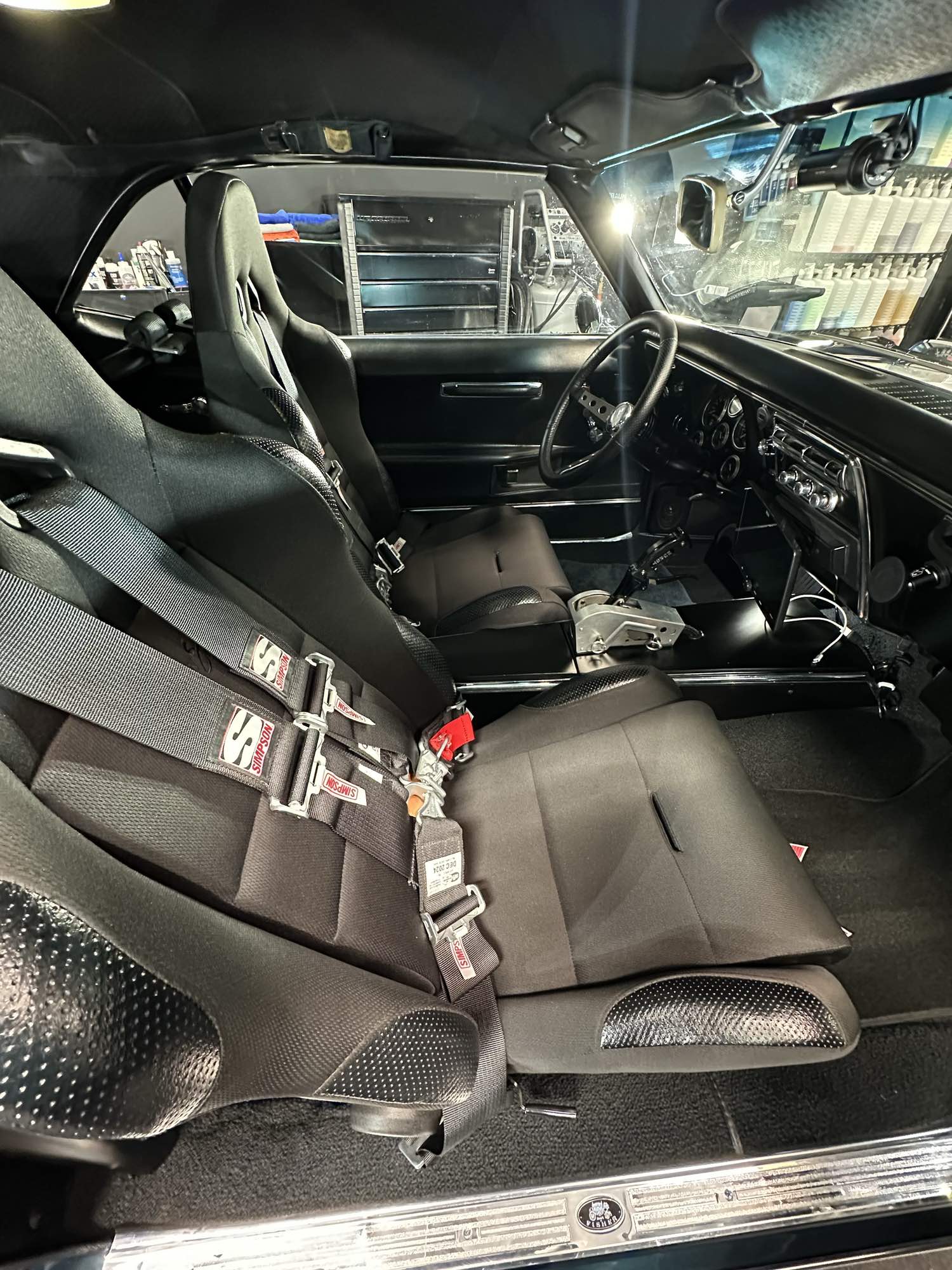

Custom performance bucket seats
Simpson five-point harnesses
Swing-out half roll bar (harness mount)
Custom center console
Stewart Warner gauge cluster
Touchscreen infotainment with Apple CarPlay
Vintage Air Gen IV air conditioning
Complete custom wiring harness
LED lighting throughout
BlackVue dual-channel camera system
Battery backup and cloud connectivity

COMPREHENSIVE LABOR & MATERIALS COST BREAKDOWN

1/02-18/2018 Mechanical

Engine Teardown, Inspection, Machining, and Rebuild3,780.00

The engine was removed from the vehicle and fully disassembled

down to the bare block for inspection and measurement.

All engine components were cleaned, degreased, and cataloged for

inspection and reuse or replacement determination.

The engine block was measured for bore, taper, and out-of-round

conditions to establish machining requirements.

The block was bored and honed to final specifications using torque

plates to ensure proper cylinder geometry.

The rotating assembly was test-fitted, clearanced, and balanced for

proper operation at performance RPM levels.

The crankshaft was installed and main bearing clearances were

measured and verified.

Connecting rods and forged pistons were assembled, checked

for orientation, and installed with verified ring end gaps.

Piston-to-valve and piston-to-deck clearances were measured and

corrected as necessary.

The camshaft was installed, degreed, and verified for correct

timing events.

The timing set was installed and camshaft timing was validated

against manufacturer specifications.

The oil pump, pickup, and oil pan were fitted, aligned, and installed.

1/19-30/2018 Mechanical

Cylinder heads were prepared, assembled, torqued, and installed

using proper torque sequencing.2,520.00

Valve train geometry was set, including lifter preload and rocker

arm alignment. The intake manifold was fitted, sealed, and torqued.

All engine gaskets and seals were installed to prevent oil, coolant,

and vacuum leaks. External engine accessories including water pump,

alternator, pulleys, belts, and brackets were installed and aligned.

The cooling system components were fitted and verified for clearance

and airflow. All engine finishes, coatings, and detailing were completed

after final assembly. The completed engine was primed, pre-lubricated,

and prepared for initial startup.

2/15-18/2018 Mechanical

Carburetion Installation1,440.00

The multi-carburetor induction system was assembled and synchronized

for progressive operation. Carburetor linkage geometry was fabricated

and adjusted for smooth throttle response. Fuel delivery components

were installed and routed using proper fittings and pressure regulation.

The fuel system was pressure tested and adjusted to operating specifications.

3/02-15/2018 Mechanical

Transmission Rebuild and Installation2,340.00

The transmission was fully disassembled and all internal components

were inspected for wear and damage. Transmission cases and

components were cleaned and prepared for assembly. New clutches,

bands, seals, and internal wear components were installed.

Valve body modifications were performed and calibrated for performance

operation.

3/27-30/2018 Mechanical

Transmission assembly.1,620.00

The torque converter was installed and checked for proper

engagement. The transmission was assembled to specification

and sealed. A deep aluminum transmission pan was installed for improved

cooling and serviceability. Transmission linkage, mounts, and geometry

were fabricated and installed. The driveshaft was fitted, aligned, and balanced.

The transmission was installed into the vehicle and aligned with the drivetrain.

4/01-05/2018 Mechanical

Ignition System Installation and Calibration.900.00

The ignition control system was installed and wired to manufacturer

specifications.The distributor was installed and indexed correctly to

engine timing marks. Ignition wiring, coils, and power routing were

installed and secured. Base ignition timing was set and verified.

Ignition advance curves were programmed and tested under

operating conditions. The ignition system was tested for spark

consistency, timing stability, and reliability.

5/02-04/2018 Mechanical

Final Setup, Testing, and Verification.1,260.00

All systems were checked for leaks, interference, and proper operation.

The engine was started and monitored for oil pressure, coolant

temperature, and fuel pressure. Initial break-in procedures were performed

according to engine builder specifications. Final adjustments were made

to timing, idle, and fuel delivery for optimal performance.

Subtotal Engine/transmission/Ignition Labor13,860.00

1/01–2/10/2022 Mechanical

Chassis and Frame Preparation and Installation2,090.00

The vehicle chassis was stripped and prepared for suspension

and drivetrain installation. Frame brackets, gussets, and crossmembers

were installed and reinforced as required. New body mounts and

bushings were fitted and aligned to ensure proper body-to-frame

positioning. Torque box reinforcements were installed to improve structural

rigidity under performance loads. Engine and transmission filler panels

were fabricated and installed. All frame mounting hardware was

installed and torqued to specification. Chassis underbody materials

were applied for durability, corrosion protection, and noise control.

2/15–3/20/2022 Mechanical

Front Suspension and Steering Rack Installation.2,470.00

Tubular upper and lower control arms were installed and aligned.

Polyurethane bushings were fitted throughout the front suspension.

Wilwood spindles were installed and verified for correct geometry.

QA1 coilover shocks were installed and adjusted for ride height and

preload. The front sway bar was mounted and end links adjusted.

A quick-ratio steering rack was installed, along with steering shafts

and joints. Front wheel bearings and seals were installed and packed.

All fasteners were torqued and suspension travel verified.

4/01–5/20/2022 Mechanical

Rear Suspension Installation.2,280.00

The Helix four-link rear suspension system was installed and aligned.

Rear coilover shocks were mounted and adjusted for ride height and

suspension geometry. A rear sway bar was installed and adjusted.

Rear axle seals and bearings were installed. Pinion angle, suspension

travel, and clearances were measured and set for performance use.

6/01–6/30/2022 Mechanical

Steering Column and Interior Steering Components.950.00

A rebuilt custom steering box was installed and aligned with the steering

linkage. A tilt steering column was installed and secured. The racing

steering wheel was mounted and aligned. Steering system operation

was verified for smooth travel, proper return-to-center, and clearance.

Subtotal Suspension/Steering Labor7,790.00

Brakes, Lines, Fabrication.4,459.00

Wilwood six-piston front disc brakes/discs and four-piston rear

disc brakes/discs were installed. The electronic master cylinder

and proportioning valve were mounted and plumbed. Stainless

steel brake lines were fabricated, routed, and secured. The vacuum

assist pump and reservoir were installed and wired. Custom brake

fittings and lines were fabricated as required. The entire brake system

was pressure-tested, bled, and verified for proper operation and pedal feel.

Highly Custom Exhaust.2,090.00

Hooker headers were installed and clearances verified. A custom

mandrel-bent stainless exhaust system was fabricated and installed.

Mufflers were mounted and aligned. Electronic exhaust cutouts were

installed and wired. Exhaust hardware, gaskets, and mounts were installed.

The exhaust system was checked for leaks, clearance, and proper operation.

Subtotal chassis, brake and exhaust labor14,339.00

9/17/2018 Installation

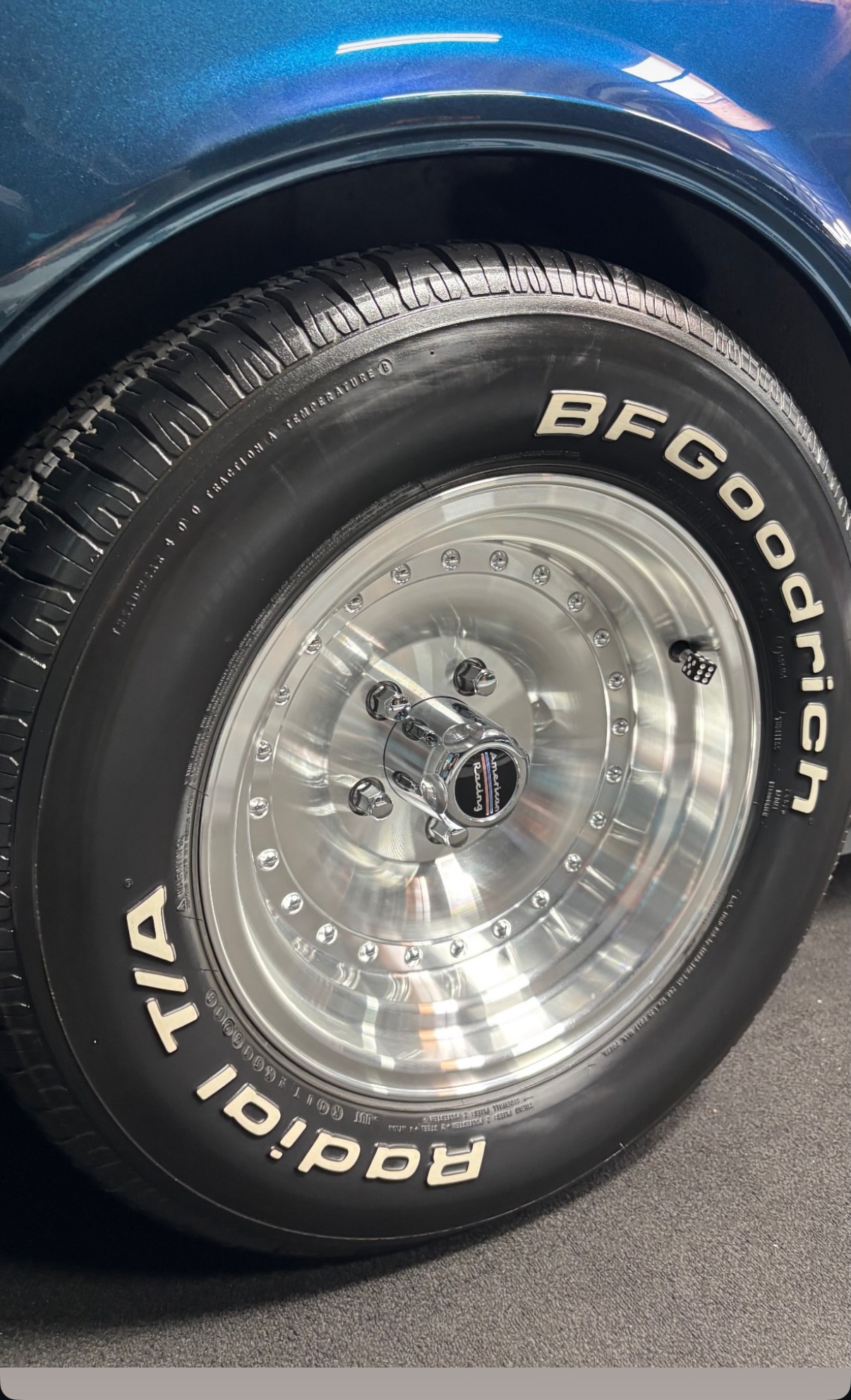

(2) 102S BF GOODRICH Radial TA

(2) 98S BF GOODRICH Radial TA

Tires were balanced, torqued, and installed. Wheel fitment, clearance,

and lug torque were verified.60.00

Fees7.00

Subtotal67.00

5/20/2019 Installation

Install distributor, correctly, bend and adjust linkage rods

on secondary carbs, pull center carb and rebuild idle circuit

one size, reinstall, pole center carb second time due to debris

in needle and seat, clean out, reinstall, install choke

thermostat, adjust choke.425.00

Run ignition wire from ignition switch to coil, bypass ballast wire85.00

Subtotal Carburation and Ignition510.00

Subtotal All Engine/Suspension/Carburation Brakes/Tires/

Exhaust Mechanical Labor32,299.00

Start stripping layers of paint and body filler from body.750.00

Continue stripping body.840.00

Continue stripping body.300.00

Wrap up stripping body for customer visit.1,080.00

05/10/2023 Material247.50

05/10/2023 Discount-1,361.25

Subtotal1,856.25

Go over car and discuss plans60.00

Meet with customer about the car30.00

Continue stripping330.00

Material27.50

Discount-151.25

Discount Adjustment for .5 labor on 05/10/23-60.00

Discount Adjustment for .25 labor on 05/10/23-30.00

Subtotal206.25

Finished stripping the bottom of rocker panels, tail light panel

and wheel openings. Filled holes where window clip pins were

missing and replaced pins. Welded up extra unused trim

holes. Repaired several cracks.810.00

Material67.50

Discount-371.25

Subtotal506.25

Geo Midas SuperShift Pearl14.77

Bright Royal Blue142.95

Wave Color Shift Pearl9.08

Geo Midas Supershift Pearl15.78

Luna Blue33.50

PPG DBC Hydro Blue157.55

PPG DBC Super White111.75

PPG DBC Brilliant Silver111.75

Subtotal597.13

Remove passenger side front fender. Adjust passenger side

door and striker. Reinstall fender. Replace missing hardware

and shims. Adjust gap and panel match. Assist Mike with

shimming and adjusting drivers side door and fender. Make

temporary bumpers for deck lid and adjust latch. Final sand

and clean passenger side rear quarter panel for metal work

and body work. Weld on a pull plate to adjust and repair bad

repair on rear lower section of passenger side quarter panel

wheel arch. Use weld on studs to pull out small dents and

hammer down high spots.422.50

Remove driver side front fender to adjust door. Assist with

door adjustment. Reinstall fender and adjust gap from door to

fender. Start stripping roof into quarter panel. Use a purple

strip disc to get into drip rail. Skim coat roof sail panel into top

of quarter panel and start blocking with 80 grit.422.50

Reweld old poorly done welds and cracks around wheel arch

and old patch on passenger side lower quarter panel. Grind

welds smooth. Stud pull more dents and waves. Smooth out

and shrink warpage out. DA prep area for filler. Block sand

rear half of passenger side quarter panel.406.25

Material192.50

Subtotal1,443.75

Continue bodywork from roof onto top of quarter panel.341.25

Adjust panel gap and panel match. Fill and block sand the top

of passenger side quarter panel and sail panel up to roof.

Strip rain gutter of old paint, sealant and rust. Final skim coat

on rear of quarter panel.341.25

Material105.00

Subtotal787.50

Spray multiple sprayouts.260.00

Sand filler on passenger side quarter panel around

"louvered" trim and finish rear section, trunk and cowl with80

grit. Partially prep trunk jamb and edges. Skim coat filler and

block sand to 80 grit.308.75

Final skim coat on deck lid. Block sand deck lid with 80 grit.

Skim coat top pf passenger side quarter panel and block

sand with 80 grit. Prep and fill remainder of passenger side

quarter panel wheel opening and block sand with 80 grit. Re-

weld driver side lower rear quarter panel to repair prior bad

repair work.260.00

Use weld on struts to pull lows on driver side rear quarter

panel. Fill holes with weld and then grind down welds. Skim

lower quarter panel and start block sanding with 80 grit.325.00

Detail sand entire tail light valance panel. Strip old damaged

seam sealer. Remove gas door and tail pipes. Stud pull

dents, fill and block sand various dents and waves to 80 grit.178.75

Re-weld driver side wheel lip over broken/cracked weld.

Continue block sanding with 80 grit on lower portion of driver

side quarter panel. Strip driver side wheel lip and then start to

body work.260.00

Material245.00

Rage Ultra & Plastic Honey169.33

Subtotal2,006.83

Finalize lower rear quarter panel body work. Strip upper

portion of driver rear quarter panel and body work where308.75

Detail strip passenger side roof and door. Chemically treat

deep rust freckles. Stud pull dents on passenger side door.325.00

Prep edges of doors and Final fill and block sand on C pillar.

door jamb on passenger side.

Remove chips of old paint and primer. Final check of gap and

panel match. Level dents. DA sand door with 80 grit. Fill low

spots and block sand with 80 grit. Fill and block rear wheel

arch and finalize prep. Block sand passenger side A pillar.325.00

Fill to sculpt. Bodywork top of driver side quarter panel then work all three

sections of wheel lip. Use strip disc to remove all old paint113.75

Continue working rear driver wheel lip. Fill low spots.178.75

Material192.50

Subtotal1,443.75

Final clean up on passenger side front fender. Mark low

spots and stud pull multiple dents. Split old patch on bottom of390.00

fender and bend to correct shape. Reweld and grind welds.

Final shaping of drivers side wheel well lip. Strip front of

quarter panel to door. Go over with 80 grit DA. Locate issues227.50

and mark. Use cone stripper to remove old Material from

louvers. Bodywork as needed and then sand with 80 grit.

Make final stud gun pulls on dents and use shrink disc on308.75

high areas, Final clean up and prep for filler. Fill and block162.50

sand rear half of passenger side front fender to 80 grit.

Strip paint from drip rail and then strip drivers side door and

rocker panel. Pull dents out of door as needed into bottom of

quarter panel.308.75

Fill and block sand front half of passenger side front fender.

Remove tires and set up on wheel stands. Detail strip wheel

arch and fill. Block sand filled areas.

Block sand drivers door into rear quarter panel with 80 grit.308.75

Material262.50

Subtotal1,968.75

Remove passenger side turn signals and parking lights.

headlight assembly. Disassemble

and clean up trim rings. Install new headlights. Modify

adapters for plugs. Route wiring to passenger side front

corner and install plugs. Wire driver and passenger side front227.50

Repair ignition coil mount engine. Loom and tape all wiring.

by removing nuts jammed into cowl.

Drill and replace them with nutserts. Mount coil and route

ignition and distributor wiring across rear of motor. Wire

ignition system and loom. Route sensor wires to front of438.75

Find turn signal housings lights to run wiring to the rear of the car.

online due to one socket being

broken and condition of housings. Find correct one wire

alternator and order. Wire in trinary switch for air conditioning.

Route wires into wheel well opening. Temporarily mount fan

relays and tie in trinary/water temperature sensors into fan

electrical. Temporarily install tail lights and rear side marker406.25

Pressure sensor location.

Loom, splice and run wires to wiper washer system. Splice

power wires, add plugs, loom and tape to harness. Assess oil146.25

07/08/2024 Antenna9.20

07/08/2024 MTX Powered Subwoofer Enclosure225.83

07/08/2024 RH Park Lamp Housing74.31

07/08/2024 LH Park Lamp Housing74.31

07/08/2024 Park Lamp Housing Shipping18.73

Material187.50

Subtotal1,808.73

Measure space available for subwoofer in trunk. Find bass

tube and antenna online and order.97.50

Wire in new air conditioning controls. Continue under dash

wiring. Begin running amplifier power wire for subwoofer.

Mount fuse on fender well.390.00

Receive bass tube. Test fit in trunk. Loom power and remote

wires. Begin to wire in camera and under dash wiring.195.00

Tie up under dash wiring. Mount control module after tying in

air conditioner power to new harness. Begin running rear

harness. Test door switches for interior lighting. Check in

new parts and update invoices. Start new tote and place

unused parts in it to give back to customer. Discuss changes

in painting process and begin final mounting of wiring in

engine compartment.226.75

Material147.50

Subtotal1,106.25

Run RCA cables to subwoofer in the rear. Run amplifier

remote wire to the rear. Run speaker wires to the front kick

panels. Mount rear harness behind back panel on the drivers

side. Run stereo power and trigger wires. Wire speaker,

power and remote wires to stereo plug behind dash and

through head unit opening in dash board. Mount antenna and

run wire to stereo area.130.00

Make ground cable for sub woofer. Hook up all of the sub

woofer wires. Mount the subwoofer. Clamp down rear

harness and RCA cables. Clean up side marker backing

plates to add ground wires. Remove paint from trunk areas

under tail lights to add grounds for tail light housings. Make

and install ground on driver side marker housing. Install bulb

socket terminal and splice side marker wiring into rear

harness. Splice side marker wiring into rear harness. Splice

in tail lights and turn signal/brake light wires on driver side into

rear harness. Install fuel sender wires and tie into rear

harness.260.00

Material60.00

Subtotal450.00

Make battery cables. Run battery cable to starter, alternator,

maxi-fuses behind battery. Install maxi-fuses and covers.

Drill and install threaded inserts into frame. Install ground

cables. Make and install ground cable.260.00

Wrap up wiring and help move car into body shop.65.00

Move car into body shop and break down project plan.16.25

Block sand decklid into rear package tray and quarter panel

up to door on the passenger side. Start block sanding roof

into quarter panel with 120 grit.195.00

Block sand driver side rear quarter panel into deck lid. Start

block sanding quarter panel into driver side door with 120 grit.260.00

Finish block sanding passenger side roof into a-pillar and top

of bodyline into reverse mask with 120 grit. Block lower half

with 120 grit. 120 grit sand the rear section from decklid to

bumper and tail light panel.585.00

Assemble hood hinges. Chase threads on fender mount,

hinges and hood. Install hood. Clean up rough stamped

edges, gap and panel match. Adjust hinges to fit hood to car.

Layout location for hood pin placement. Update Thomas.292.50

Block sanded drivers side with 120 grit. Finalized rear quarter

panel, door and front fender. Assisted with installing the hood.585.00

Sand driver side rockers, front fender wheel lip and rear

fender wheel lip with 120 grit. Check panels for imperfections

and address. Fill pinholes before starting 320 grit block

sanding.455.00

Block sand hood to check for imperfections. Prep face and

edges with 80 grit. Fill perimeter of hood and block sand

down with 80 grit to eliminate waves and Polyester prime.97.50

Mount hood pins. Mark location on hood. Center punch and

drill holes. Layout hood pin retaining clips. Measure and mark

holes. Drill holes. Remove all hood pin parts. Mark hood

hinge location and help remove hood.130.00

Finalize block sanding hood with 120. Mask and Polyester

prime.260.00

Material492.50

07/30/2024 Geo Midas Supershift Pearl235.21

07/30/2024 Wave Colorshift Pearl78.53

Subtotal4,007.49

PPG DBC500 Color Blender509.53

07/31/2024 PPG DMD1683 Basecoat893.50

07/31/2024 PPG DT1598 Thinner659.79

07/31/2024 PPG DCU2021 Urethane Clear1,015.60

07/31/2024 PPG DCX61 Hardener600.50

07/31/2024 PPG DBCN 35458-MB-744342.89

Subtotal4,021.81

Reinstall hood and adjusted for block sanding.32.50

Block sand drivers side of roof, deck lid, and rocker panels

with 320 grit. Assist with installing hood. Began block sanding

hood with 120 grit.617.50

Sanded passenger side rocker, rear end bumper area and

wheel wells with 320 grit. Filled pinholes around the car.

Began working on gaps and edges. Started sanding cowl with

420 grit.601.25

Block sanded hood into top of front fenders. Go over hood

and fill pinholes. Block sand hood with 320 grit. Prep wheel

tub lips on drivers side. Prep rear glass channel. File holes

on doors and go over gaps on drivers side.666.25

Sort out issues with broken mirrors and fitment. Make sure

they fit and set up a plan for door panel plate. Weld unused

hole in door top. Body work and prime filled hole.455.00

Disassemble and repair damaged threads in mirror housing

and reassemble. Remove both doors and hood. Label and

store hardware. Seam seal drivers side rain gutter, rear cowl

and tail panel. Assist with seam sealer on passengers side.

Finished prepping cowl with 120 and 320 grit. Sanded both

door jambs with 220 and 320 grit. Sanded door hinges with

mini sander. Helped seam seal roof and rear.552.50

Prep front and rear glass channels with 320 grit. Scotch Brite

and DA entire car. Remove deck lid and start to prep jambs.

Prep deck lid channel with 320 grit. Prep front fender edges

with 320 grit. Assist with seam sealer.585.00

Go over mirror plate block off panel.16.25

Discuss mirror plate with Dave and get details to make a block off plate.16.25

Final Scotch Brite prep throughout the body. Scuff seam sealer.

Sand filler cap area with 320 grit. Blow off and clean, Start to

mask for paint.585.00

Finish prepping car for paint. Scotch Brite and clean. Start

masking for paint.601.25

Set up in booth on stands and remove wheels. Blow off and

finish masking.162.50

Prep out jambs, underside of deck lid, underside of hood, and

fuel door in 320 and then Scotch Brite. Remove passenger

side door seal and starr removing adhesive.422.50

Final check and tack off. Spray two coats of DP90. De nib

and scuff. Mix up blue pearl. Spray three coats of black base

then three coats of black pearl, and three coats of clear.471.25

Remove remaining glue from passenger side door and tape

through door panel. Sand with 320 grit and Scotch Brite.

Block sand drivers side door with 120 grit and then 320 grit

from filling extra hole. Remove seal and glue from door and

sand jamb with 320 grit.406.25

Material952.50

Subtotal7,162.41

Unmask body in the booth. Reinstall wheels and remove from

booth. Set up parts load of hood, doors and deck lid. Mask

doors and then hang.260.00

Blow out and help mask doors. Prep booth with stands and wire. Hang and clean parts.

Spray sealer, black base, pearl

and clear. Cleanup and make pearl intercoat for stripe color.585.00

08/07/2024 Seam Sealer151.05

Unload painted parts from booth and set up on stands.32.50

Material135.00

Subtotal1,163.55

Reinstall hood hinges and hood. Adjust hood fitment. Mount

doors and adjust. Mount decklid and adjust. Wet sand hood,

drivers side front fender, drivers side door, drivers side

rocker panel and half of the roof with 400 grit and red Scotch

Brite.260.00

Finish installing remaining door bolts. Wet sand the remaining

parts of the car with 400 grit and red Scotch Brite. Detail sand

all corners and edges. Clean up and partially demask the car.

Blow out and mask door jambs, windows and engine bay. Go81.25

over remaining parts and set up wing on a masked stand.

Set up body in booth. Put up on jack stands and remove

wheels. Help with masking for paint.585.00

Helped set up car in the booth. Clean and mask for paint.130.00

Help finish the final masking in the booth. Blow off, wipe down471.25

and tack. Spray two coats of sealer over primed parts. Spray

three coats of black base, three coats of blue pearl with a

drop coat. Touch up details and go over missed spots.

Layout stripes and mask. Spray silver and pearl coats.

mask.666.25

08/16/2024 1/4" Fine Line Tape24.25

Repair spots in stripe tape line blow outs. Clear all parts with

four coats of clear.406.25

Material400.00

Subtotal3,024.25

Paint Labor Move car and parts out of booth.16.25

08/19/2024 Paint Labor Help Move car out of booth.16.25

08/19/2024 Paint Labor Help move car and parts out of booth.16.25

Buff Labor2,551.25

Unmasked car in booth and reinstalled wheels and tires.

Began DA color sanding deck lid, passenger side and hood

with 1000 grit. Block sanded tight areas by hand with1,000

grit.471.25

Finished color sanding the hood and drivers side with1,000

grit. Began color sanding passenger side , deck lid and hood

with 2000 grit.585.00

Finished color sanding body with 2000 grit and 3000 grit.

Began buffing deck lid area, roof and passenger quarter

panel.568.75

Finish buffing the rest of the car. Clean up and final prep

front valance with red Scotch Brite.325.00

Clean off flaking old undercoating on the inside. Set up in

booth. Spray sealer, black base, blue pearl and clear coats.341.25

Black pad polish on deck lid area, roof, passenger side

quarter panel and door.260.00

Material400.00

Subtotal3,000.00

Remove and drain fuel tank. Find new filler tube and order.

Assess fuel sending unit issue.

Finished black pad polishing passenger side fender, hood

and drivers side. Unmask car and blow off. Cleaned up for

final assembly.422.50

08/26/2024 2" Fuel Line Coupler97.50

Transmission Pan Gasket21.14

Test fuel sending unit. Find fuel tank, sending unit and gauge

adapter module locally. Put parts on will call to be picked up.

Remove insulation from fuel tank mounting rails under car.

Reinstall tail pipes and swap wheels.97.50

08/27/2024 Run to pick up parts on will call.113.75

Clean part. Remove some of the heavier pitting and

imperfections in the chrome. Mask large hole. Spray with

non-reflective coating. Set up and fasten to turntable. Scan

part. Upload scan and clean up. Modify part to remove large

hole and protrusions on the rear. Smooth out and convert to

printable file. Print prototype sample and check fitment. Load

Material and print final part.180.00

68-69 Camaro/Firebird Remote Mirror Deluxe Interior

Remote Delete Plate23.94

08/27/2024 Fuel Level Gauge Interface Module134.34

08/27/2024 Fuel tank282.88

Make an itemized list with estimated hours to complete car.32.50

Install new sending unit into fuel tank. Install isolators onto

outside of tank. Install fuel filler tube. Install fuel tank. repllace

battery to starter cable and route away from exhaust header.

Install battery. Begin to install fuel gauge adapter module.162.50

08/28/2024 Fuel Sending Unit60.11

Finish starter wiring.32.50

Material162.50

Subtotal1,921.16

PowerMaster 37293 150A Chrome Alternator259.04

07/03/2024 Bob Drake BD-5001K Shims80.63

Remove speedometer gear driven set to determine which

gear is installed. Figure out correct gear combo. Find drive

and driven gears online and order.97.50

08/30/2024 Taylor Pro 70055 8mm Wire Set115.06

08/30/2024 TCI-880032 45 Tooth Speedometer Gear30.23

08/30/2024 TCI-880018 15 Tooth Speedometer Gear37.73

Remove drive shaft. Remove transmission tail shaft and48.75

drive gear.

Receive parts and check in. Install new speedometer drive

gear. reinstall tail shaft housing. Reassemble speedometer

driven gear housing and install. Install speedometer cable.

Loom and clamp wiring to oil pressure sensor. Figure out

adapters to get oil pressure sensor away from header.373.75

Locate adapters for oil pressure sending unit. Order and pick

up. Remove oil filter housing. Remove oil pressure sensor.

Install adapters and reinstall oil pressure sending unit.

Reinstall oil filter housing and oil filter. Hook up wire to sensor

and tie wire back from exhaust.211.25

Mask off silver on the hood scoops and prep the face of the

scoop and underside for satin black. Clean up the silicone

smears from the hood tach. Mask the gauge face. DA sand

with 400 grit to remove mold waves and finish with Scotch

Brite. Hang parts in booth.227.50

Material147.50

09/10/2024 Elbows14.01

Subtotal1,672.80

Clean and check function of passenger side quarter window.

Adjust bent track back into alignment and adjust alignment

screws. Lubricate all moving regulator and track parts. Clean

and reattach passenger side rear quarter interior panel.

Install window corner parts at base. Install drip rail trim on

both sides.227.50

Pull all parts down and organize for assembly.48.75

Find parts online and place in carts. Install trunk bumpers.

Install fender braces. Install hood bumpers. Find speed nuts

for side markers. Pull front tins to sandblast.162.50

Sand blast bottom side of front sheet metal to remove

surface rust. Paint satin black. Install hood latch and

passenger side front filler panel. Replace missing hardware

with new nuts and j clips. Clean driver side tail light lenses

and side marker. Install bulbs into light sockets. Install side

marker assembly. Make and install housing ground wire for

side marker. Install driver side tail light housing. Install light

sockets.130.00

Finish making spark plug wires. Clean up set of Camaro trim

and compare to original. Bundle up original trim and put with

parts not being used.130.00

Material107.50

Subtotal806.25

Sand blast and paint drivers side filler panel. Install new j clips146.25

and hardware. Sand blast and paint hood latch. Install with new

hardware. Removed seized and painted on bolts from center

core support latch bracket. Set aside for cleaning and

installation. Chase threads on core support inserts.

09/16/2024 AMD-W-381 Quarter Window Weatherstrip Seals40.86

09/16/2024 AMD-W-852 Exterior Door Handles85.19

09/16/2024 MMP-SBK208 Bump Stop Kit47.81

09/16/2024 OAM-6730 Door Sill Plates68.55

09/16/2024 OAM-8509 Headlight Bezel Extensions39.53

09/16/2024 OER-7738668 Door Jamb Vent Grilles47.51

09/16/2024 OER-K687 Inner Door Panel Window Guides61.23

09/16/2024 OER-K929 Cowl Seal Set35.94

09/16/2024 OPS-TSS226 Headlight Adjusters45.39

09/16/2024 PQP-DLP-1710-68 Door U-Jamb Seals31.08

09/16/2024 PYC-PY129A Door Lock Cylinder Set58.76

09/16/2024 Shipping Cost14.99

Sand blast, paint and install hood latch, front support and

bracing. Attempt to rebuild passenger side headlight. Sand

blast paint and rust off to get a better look at bucket. Too far

gone to rebuild. Look up a replacement.97.50

Sand blast and paint glove box striker. Install driver side

rocker panel trim. Order parts.65.00

09/18/2024 Lower Grille Support Brackets83.31

09/18/2024 Grille Insert Bars99.53

Material47.50

Subtotal1,115.93

Receive new parts. Check in and set aside for assembly.

Update office.

Finished installing rear driver side quarter panel accent trim.698.75

Started replacing quarter window seals and trim. Cleaning

polished restoring edge trim.

Continued to assemble quarter window and door seals and325.00

trim. Installed side mirrors, door locks and handles. Tested

function.32.50

Material162.50

Subtotal1,218.75

Receive new parts. Check in and set aside for assembly.

Update office.32.50

Finished installing rear driver side quarter panel accent trim.

Started replacing quarter window seals and trim. Cleaning

polished restoring edge trim.325.00

Continued to assemble quarter window and door seals and

trim. Installed side mirrors, door locks and handles. Tested

function.75.00

Material162.50

Subtotal1,218.75

Installed final passenger side exterior door trim. Installed

trunk seal and trunk lock. Installed passenger side tail light.

Swapped out old hardware from rear bumper to new

hardware. Cleaned up and restored brackets and bracket

hardware. Installed and fit bumper.

Color sand and buff fuel filler lid.715.00

Color Sand. Buff Labor48.75

Paint driver side headlight mounting plates and brackets.

Rivet new springs in place. Straighten upper mounting

bracket. Chase threads in mounting holes. Rivet upper

mountingbracket back on. Install adjuster inserts and

screws. Remove paint from trim rings. Install brackets and

bulbs. Install trim rings and set aside for install.227.50

10/10/2024 Quarter Window Jamb Seals30.55

Material.152.50

Subtotal1,174.30

Tear down passenger side headlight assembly. Strip paint.

Remove springs and upper mount rivets. Straighten mounting

plates. Sand blast and paint all parts. Chase threads. Rivet

new springs and upper mounting bracket to mounting plate.

Install inserts and adjuster screws to buckets. Remove paint

from trim. Install bulbs and trim. Set aside to be installed.260.00

Order parts.

Look up specifications for cameras. Find LTE module and

battery pack. Verify compatibility and select correct module.65.00

Install fuel door emblem and handle. Install, fit and adjust fuel65.00

Power BlackVue camera431.99

BlackVue LTE Module191.99

Installed both inner door panels. Wired in license plate light.

Installed remaining taillight and brake light bulbs ands

sockets. Cleaned up wire loom in trunk area. Installed trunk

matt and modified to fit. Grounded sub woofer and wired in

rear speakers. Installed fender badges on both sides.585.00

Paint Labor paint satin black.

Sand primer on door panel block off plate. Final prep and130.00

Color Sand. Buff Labor, orbital for final assembly. wing.

Color sand rear wing with 1000, 2000 and then 3000 grit.

Polish out 2 steps. Mask, prep and trim black underside

corners. Polish front fender emblem and rear wing areas with

Reattach stripped out stud on rear260.00

Material210.00

Subtotal2,198.98

Installed rear spoiler, hood pin plates and hood pins. Installed650.00

faux hood vents. Adjusted poor fitting hood latch. Readjusted

hood pins. Installed rubber bumpers. Unclogged wiper

washer nozzles. Painted nozzles and installed. Plumbed

washer lines. Began installation of cowl panel.

Worked on parts list. Searched for missing items online.97.50

Removed old cowl seal wedges. Prepped surface and

attached new cowl seal wedges and cowl seal. Intsalled

rocker molding. Began assembling nose section.585.00

Set up account and place parts order.32.50

Material210.00

Subtotal1,811.16

Finished installing lower fender extensions. Installed turn

signal light housings. Pulled down bumper. Cleaned bumper

and polished with steel wool.325.00

Front bumper stabilizer bushing46.23

Continued working on assembly of grill and front bumper

assemblies.97.50

Material65.00

Subtotal533.73

Continued working on assembling the front end.162.50

Assisted with installing the glass. Continued working on the

front bumper and grille. Repaired capture nut on upper filler

panel. Worked on getting poor quality aftermarket parts fitting

properly.552.50

Glass Installation665.41

Finished assembling and adjusting front bumper and grille.

Installed hood insulation. Started to prep lower windshield trim

for installation. Installed and plumbed washer fluid reservoir.585.00

Assist with aligning front bumper.32.50

Installed cowl. Had to adjust hood and cowl due to fitment of

cowl prior to glass installation.585.00

Material295.00

Alignment175.00

Subtotal3,052.91

Remove original column plug and test wires. Install matching

plug from new harness. Run wires and connect under dash.

Figure out exhaust cut out wiring and test. Find malfunction.

Remove accessory lead and route wires to power point and

area for exhaust cut out switch. Order correct switch for cut

outs. Cap off unused accessory wires and tie up in harness.113.75

Begin replacing zip ties on harness to eliminate any extra

circuits. Clamp to harness and continue working on radio

wiring.455.00

Begin installing camera and power bank.130.00

Material107.50

Subtotal806.25

Finalize air conditioning wiring. Finalize stereo wiring.390.00

Fit glove box insert. Mount passenger side wiring harness up

above glove box. Attach to grab bar studs. Wire air

conditioning control lights. Order LED bulbs for air

conditioning controls. Install fuses for completed circuits.

Make a print out for added circuits with AMP ratings.390.00

Parts582.59

Subtotal972.59

Finish hooking up camera system on bench with battery box.390.00

Figured out that there is no output for cameras. Confirm with

manufacturer. Update Thomas and make a plan for install.

Mock up backup camera. Remove license plate and

measure for spacers so camera will clear bumper bracket.

Find and order4 spacers and rubber isolators for plate. Tie

up stereo wiring. Install LED bulbs for air conditioning

controller and install controller.

Double check wiring and make adjustments to firewall plug.

Install main fuse cover and look for battery hold down. Order

seat belt bolts and order interior LED's. Wire center console.

Add circuits and amperages to list.390.00

Seat Belt Bolts31.45

Test remaining circuits. Install windshield trim. Install rear

view mirror to check front camera fitment. Disassemble rear

view mirror assembly. Modify assembly to move mirror pivot

forward allowing camera to fit high enough in the windshield.

Modify boot/sun visor mounts to fit over modified mirror

bracket without relocating visors. Paint mirror bracket black

so it is less visible through boot modification.341.25

MAT - Material 17.25 10.00172.50

Interior LED's12.42

Subtotal1,337.62

Paint Labor Paint tachometer Housing.500.00

Subtotal Tachometer Labor500.00

Vehicle 1968 Pontiac Firebird. Acquisition Cost39,117

Manufacturer General Motors

Base Vehicle Subtotal39,117

Rebuilt Pontiac 350 engine block, bored 0.060 over (was the stock engine)

Forged stroker Scat crankshaft1,550

Scat forged connecting rods890

Forged pistons custom compression height950

Performance bearings rings and seals520

ARP complete fastener kit310

Isky hydraulic Rattler camshaft490

Performance lifters, pushrods, rocker arms820

High flow water pump175

PowerMaster high output chrome alternator425

Double roller timing chain set340

Complete new hoses belts and fittings300

High volume oil pump and pickup250

Aluminum triple core radiator525

Spal dual electric cooling fans543

CVF custom TIG welded tall aluminum valve covers475

Performance oil pan150

Complete engine gasket and seal kit215

Engine assembly finishes coatings and prep materials145

Engine compartment restoration prep/finish supplies243

Engine & intake manifold paint prep/finish supplies400

Engine rebuild components fluids and setup350

Valve cover gaskets28.49

Timing cover, gaskets22.79

Intake gaskets59.68

Oil pan gasket28.49

Thermostat gasket3.29

Thermostat11.09

Carburetor gaskets17.07

Transmission seal6.59

Transmission seal8.69

Lines44.07

P/S pump65.99

Trans Filter kit21.74

Oil switch20.37

Fuel filter8.65

Coil bracket11.99

Heater hose23.68

Fuel hose 1/41.80

Brake lines9.15

Fuel injection hose10.06

Hose clamp12.48

Hose clamp2.00

Hose clamp2.02

Ignition wire set74.99

PCV valve2.46

Valve cover Gromit7.49

Bolts and washers7.00

PCV hose20.04

Oil filter3.78

Springs10.02

Fuel filter20.99

Belt9.89

Belt13.49

Starter70.49

Sealer3.35

Radiator hose21.86

Radiator hose16.50

Vacuum hose7.56

Electrical15.50

Fittings10.35

Transmission hose11.91

Motor oil28.28

Oil filter5.00

Hose clamp2.02

Install timing, cover, intake, an oil pan, grind thermostat,

housing, and timing cover200.00

Blast/paint intake manifold65.00

Install transmission lines100.00

Install body mounts150.00

Install fuel lines50.00

Install cut to fit wires80.00

Why are electric fans100.00

Mount coil25.00

Wire distributor50.00

Replace accelerator pump in center carburetor50.00

Hazardous materials25.00

Engine Rebuild Subtotal19,496

Six Pack Induction and Fuel

Triple Deuces Rochester carburetors, progressive setup4,950

Edelbrock six pack intake manifold525

Custom linkage/brackets and TV cable system315

Custom air cleaners225

Aeromotive electric fuel pump275

Aeromotive adjustable fuel pressure regulator210

Complete AN fuel line system550

Custom fuel cell675

Auto Meter fuel sending unit245

High capacity fuel filters and hard lines435

Six Pack Induction and Fuel Subtotal8,405

Ignition

MSD programmable ignition control and distributor780

MSD performance ignition wiring and coils245

Ignition Subtotal1,025

Engine Subtotal28,926

Built 700R4 performance transmission3,850

Lock up torque converter700

Corvette spec valve body392

Deep aluminum transmission pan185

Hurst Quarter Stick gate shifter410

Fabricated steel shifter riser875

Custom transmission linkage mounts and geometry475

Custom driveshaft balanced385

TA Performance 12 bolt rear end & axle assembly3,100

Posi differential 3.90:1875

Performance rear axles725

Differential rebuild components fluids and setup350

Transmission and Driveline Subtotal12,322

Chassis and Frame

Frame brackets gussets and crossmembers385

Frame mounting hardware kit110

Chassis underbody materials130

Body mounts and bushings155

Torque box reinforcement275

Engine and transmission filler panels110

Chassis and Frame Subtotal1,165

Front Suspension

Tubular upper control arms525

Tubular lower control arms575

Wilwood spindles325

QA1 coilover shocks975

Front sway bar325

Steering rack quick ratio385

Steering shafts and joints130

Polyurethane bushing kit215

Front wheel bearings and seals90

Front Suspension Subtotal4,872

Rear Suspension

Helix four link suspension system2,350

Rear coilovers750

Rear sway bar225

Rear axle seals and bearings140

Rear Suspension Subtotal3,465

Steering System

Rebuilt custom steering box325

Tilt steering column275

Racing steering wheel235

Steering Subtotal835

Suspension and Steering Total9,172

Wilwood six piston front disc brake system2,450

Wilwood four piston rear disc brake system1,875

Wilwood master cylinder and proportioning valve295

Stainless brake line system350

CVS PowerPac vacuum assist pump and reservoir725

Custom brake fittings and lines170

Brake Subtotal5,865

Centerline forged aluminum wheels custom3,950

(2) 102S BF GOODRICH Radial TA326.96

(2) 98S BF GOODRICH Radial TA309.00

Wheels and Tires Subtotal4,585.96

Hooker headers725

Custom mandrel bent stainless exhaust system975

FlowMaster performance muﬄers450

QTP electronic exhaust cutouts525

Exhaust hardware gaskets and mounts135

Exhaust Subtotal2,810

Vintage Air Gen IV air conditioning system3,350

Climate Control Subtotal3,350

Complete custom wiring harness entire car1,050

Fuse blocks relays and distribution150

AGM battery and mounting system310

Custom cables and shut off switch600

PowerMaster high output starter motor275

Complete LED lighting upgrades375

Stewart Warner gauge cluster725

Touchscreen infotainment stereo, reverse camera, Apple CarPlay950

Amplified base audio system, Pioneer speakers875

BlackVue dual channel camera system385

BlackVue battery backup and cloud module350

Electrical Electronics and Security Subtotal5,445

Custom performance bucket seats2,350

Custom welded seat mounts and sliders578

Simpson five point harnesses750

Custom fabricated ‘swing out’ half roll bar (harness)1,850

Custom fabricated center console875

Molded carpet kit495

KilMat sound deadening system475

Interior metal prep and coatings325

Weatherstrip and window hardware1,100

Interior and Safety Subtotal8,798

Metal finishing and skim coating5,850

Five stage color shift paint system, Didspade paint2,950

Clear coats and specialty finishes1,450

Pontiac 400 H/O hood, prep/paint1,100

Eddie Motorsports CNC billet hood hinges and pins725

Correct Pontiac grille and emblems900

Front and rear glass1,100

New bumpers front and rear1,650

Wiper motor mirrors handles trim750

Rear spoiler and cowl panel850

Reverse camera system275

Paint booth materials and consumables1,450

Body and Paint Subtotal17,400

Subtotal Main Parts List $139,105

Miscellaneous Parts

10 45° Fitting24.64

#8 #10 Female Beadlock 90° Pressure Valve25.23

Heater Hose 2846823.86

V-Belt10.79

Heater Hose16.83

Trinary Switch66.13

Spark Plugs52.84

Backup camera Cable & Pioneer Speakers109.03

Gauge Adapter27.01

Fuel Pressure Gauge67.55

Fuel Pressure Regulator79.63

Carburetor kit33.64

Interior LED's12.42

Fasteners31.58

T5 LED Bulbs10.35

Material120.00

M6 Rubber Mounts17.15

Black ABS Washers13.51

Fuel Door tension Spring

Washer Fluid Reservoir Bracket

Control Arm Splash Shield

Hood Insulation Clips

Windshield Molding Clips

Hood Bumpers

Radiator Support Brace Bumpers

Windshield Molding Bolt Set236.16

Material211.00

PAINT/Spray Outs

Geo Midas SuperShift Pearl14.77

Bright Royal Blue142.95

Wave Color Shift Pearl9.08

Geo Midas Supershift Pearl15.78

Luna Blue33.50

PPG DBC Hydro Blue157.55

PPG DBC Super White111.75

PPG DBC Brilliant Silver111.75

Subtotal597.13

Quarter Window Weatherstrip Seals40.86

Exterior Door Handles85.19

Bump Stop Kit47.81

Door Sill Plates68.55

Headlight Bezel Extensions39.53

Door Jamb Vent Grilles47.51

Inner Door Panel Window Guides61.23

Cowl Seal Set35.94

Headlight Adjusters45.39

Door U-Jamb Seals31.08

Door Lock Cylinder Set58.76

PowerMaster 150A Chrome Alternator259.04

Bob Drake Shims80.63

Taylor Pro 8mm Wire Set115.06

TCI 45 Tooth Speedometer Gear30.23

TCI 15 Tooth Speedometer Gear37.73

1) 1/8" Brass 90° Elbow

1) 1/8" Brass 45° Elbow

1) 1/8" Short Brass Nipple

1) 1/8" 2" brass Nipple

1) 1/8" 2-1/2" Brass Nipple

Subtotal29.85

Elbows14.01

Lower Grille Support Brackets83.31

Grille Insert Bars99.53

Antenna9.20

MTX Powered Subwoofer Enclosure225.83

RT Park Lamp Housing74.31

LF Park Lamp Housing74.31

07/08/2024 Park Lamp Housing Shipping18.73

Geo Midas Supershift Pearl235.21

Wave Colorshift Pearl78.53

PPG Color Blender509.53

PPG DMD1683 Basecoat893.50

PPG DT1598 Thinner659.79

PPG DCU2021 Urethane Clear1,015.60

PPG DCX61 Hardener600.50

PPG DBCN 35458-MB-744342.89

1/4" Fine Line Tape24.25

2" Fuel Line Coupler97.50

Transmission Pan Gasket21.14

Seat Belt Bolts31.45

Miscellaneous Parts Total $8,607.12

SUBTOTAL LABOR & MATERIALS COST TOTAL $65,509.25
